IUD51Z ultrasonic level meter has a beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, overvoltage, over current protection circuit functions.

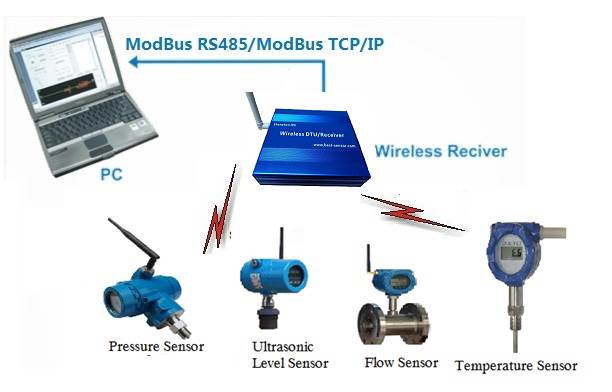

It using the embedded ZigBee module, compliance with Zigbee protocol standard, as well as CSMA / CA anti-collision mechanism, effectively avoid channel blocking at the same time and data loss. Using single batteries, low consumption design, the working life could reach more than half a year.
1) LCD display, wireless signal output
2) High-precision real-time performance, high sampling frequency, low frenquency, low power consumption
3) Long battery life
4) With anti-shock function
|
Ultrasonic Part Parameter |
|
Functions |
Integrative Type |
|
Level Range: |
5M, 10M, 15M, 20M,30M, 50M. |
|
Accuracy: |
0.5%F.S |
|
Blind Zone: |
0.2-0.6m |
|
Working Pressure: |
2 Bar (Explore Proof Type is 5 Bar) |
|
Resolution: |
3mm or 0.1%F.S (Max of them) |
|
Display: |
English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
|
Analog Output: |
4~20mA/750Ω load resistance (2 wire)
RS485 |
|
Relay /Alarm Output: |
AC 250V/ 8A; DC 30V/ 5A; |
|
Power Supply: |
24VDC 120mA
12VDC (available to offer power by motor, battery or solar power and so on.) |
|
Environment Temperature: |
Meter: -20~+60°C/ Sensor: -20~+80°C |
|
Communication: |
Zigbee Communication |
|
Explore Proof: |
Ex(ia)ⅡCT6 |
|
Water Proof: |
Standard Type: IP66 |
|
Cable of Sensor: |
Null |
|
Sensor Installation: |
By level range and model code |
|
Store Request: |
Temperature: -20~+80°C
Pressure: atmospheric pressure
Humidity: ≤90%RH
Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
|
Frequency Range |
2.38~2.5GHz |
|
Receiver Sensitivity |
-102dBm |
|
Emission Power |
20dBm |
|
Off Current |
30nA |
|
Standby Current |
50 nA |
|
Receiver Current |
10.0mA |
|
Emission Current |
280mA |
|
DATA Rate |
250Kbps,500Kbps,1Mbps |
|
Emission Range |
1000 Meter |
|
Wireless Sensor
